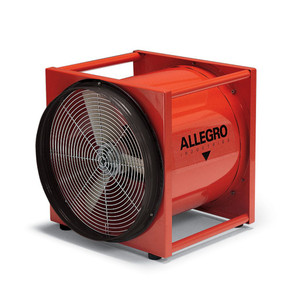

Allegro 9525-50 is for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and power coated in safety orange with 4 blade impeller. Interchangeable flange for intake or exhaust mounting. Integrated carry handles on all four sides for easy transport. Steel/Zinc plated grill, 4 rubber feet and stackable are added features of this powerhouse unit. 2 HP UL Listed, CSA Certified motor.
CONSTRUCTION:
- Complete unit epoxy powder coated in “safety orange”
- Interchangeable flange for intake/exhaust side mounting
- 16 gauge cold rolled steel housing
- Bolted motor mount construction
- Integrated carrying handles on four sides
- Steel/chrome plated grill
- Equipped with four rubber feet
- Stackable design
MOTOR:
- HP: 2 HP, Single Phase
- Certification: UL Recognized, CSA Certified
- Volts: 115/230V AC, 60 Hz
- Max RPM: 3450
- Current Draw: 21/10.5A
- Cord: 25’ (7.62m) 12/3 AWG, SJOOW-A Neoprene 300V medium duty
- Plug: NEMA 5-30P or NEMA 6-30P (Twist Lock type)
FAN:
- Glass reinforced polypropylene (PPG) four blade fan with aluminum hub
- Moving fan mounted 1 5/8” (4.12cm) from grill for safety, grill gap-5/16” (.79cm)
Blower Dimensions:
19" L x 22" W x 22.5" H
Weight: 83 pounds
Flow Rates:
Free Air CFM 7500
One 90 degree bend CFM 6700
Two 90 degree bends CFM 6130
