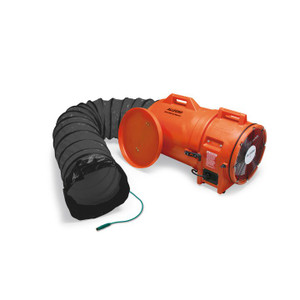

Allegro 9548-15E 12" Axial Explosion-Proof (EX) Plastic Blower w/ Canister & 15' Ducting, 220V/50 Hz

Allegro
SKU:
9548-15E
|
UPC:
790304335457
Availability:
Usually Ships in 1-2 Business Days
$1,807.82
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

This lightweight-, corrosion-, UV- and chemical-resistant polyethylene housing offers a superior design with durable construction. This compact and super quiet unit features a polypropylene six-blade fan, a steel/powder coated grill, and carry handle that’s molded into the blower. This blower also features an electric, explosion-proof, single phase motor that is UL/CSA listed and includes a NEMA rated 115V plug for use with explosion-proof socket (sold separately). The bottom enclosure ensures safe and convenient storage of electrical components. The quick-connect clipping system allows workers to attach canister, tools-free, to input side for powerful extraction or output side for ventilation. Does NOT meet CSA C22.2 No. 113 requirements.

NOTE: Explosion-proof blowers require an explosion-proof socket

CONSTRUCTION:

  • Polyethylene housing and canister assembly
  • Lightweight-, corrosion-, UV- and chemical-resistant
  • Super quiet, in “safety orange” housing
  • Carry handle molded into blower and canister housing
  • Steel powder coated grill
  • NOTE: EX blowers require an explosion-proof socket (9503-06)

MOTOR:

  • HP: 1/3 HP
  • Certifications: UL Listed, CSA Certified
  • Voltage/Hz: 220V AC, 50 Hz, Single Phase
  • RPM: 2750 (220V, 50 Hz)
  • Amps: 1.2A
  • Cord: 25’ (7.62 m), SJOOW 18/3 AWG

FAN:

  • PAGAS (Anti-static glass reinforced Polyamide) three-blade fan
  • Aluminum hub

STATICALLY CONDUCTIVE DUCTING: (included on 9548-15E and 9548-25E models)

  • Black single-ply lightweight vinyl/polyester, coated with neoprene 250° F (121.1° C) temperature resistant
  • Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
  • Retractable, non-collapsible design, Single-ply
  • Spring steel wire helix
  • WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.
