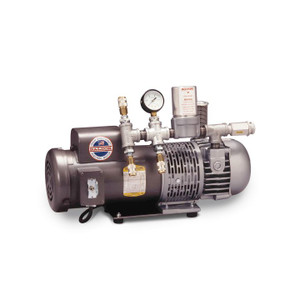

Allegro 9832 A-1500TE Breathing Air Pump

$1,895.00
(No reviews yet) Write a Review
SKU:
9832
UPC:
888975813234
Availability:
Usually Ships in 3-5 Business Days



A-1500TE Ambient Air Pump provides you with the easiest way to meet your needs for portable air sources for up to three respirator users or two hood users. Available in explosion proof configurations for special applications. Applicable for chemical handling and clean-up. For up to three respirators or two hoods. For up to three respirators or two respirator hood. This ambient air respirator pump model has a 1-1/2 hp motor. This Allegro 9832 or A-1500TW offers you a solid performance in a multi worker application for cleaning, sanding or chemical handling operations.

CONSTRUCTION:

  • Rigid metal base & housing with four rubber feet
  • Brass & galvanized steel plumbing
  • Quick-connect Rectus (OBAC) fittings (other fittings available upon request)
  • Adjustable brass pressure relief valve
  • Pressure gauge 0-1 5 psi (0-1.03 bar)
  • Fan guard
  • Powder coated gray


PUMP:

  • Type: Oil-less, rotary vane, direct driven
  • Vanes: Carbon construction (4ea/ replaceable) (3.5” (8.89cm) X 1.3” (3.40cm) X 0.188” (.47cm))
  • Inlet Filter: 50 micron felt material
  • Exhaust Filter: 0.3 Micron HEPA
  • Working Pressure: 2-12 psi (.14-.83 bar) (15 psi max (1.03 bar))
  • Performance: 0-20 CFM (0-33.9 m3/hr) (adjusted via pressure relief valve)
  • Airline length: 100 Feet (30.4m) maximum, from pump to respirator (sold separately)
  • Noise level: At Pump: 95 dB
  • At 6 feet (1.82m): 85 dB
  • At 10 feet (3.04m): 78 dB


MOTOR:

  • HP: 1½ HP, TEFC continuous duty
  • Certifications: UL Recognized, CSA Certified
  • Volts: 115V/230V AC Single Phase, 60 Hz
  • Current Draw: 12.4 A @115V (6.2 A @ 230V)
  • RPM: 1725
  • NEMA Nom Eff: 80
  • Cord: 8’ (2.43m) 14/3 AWG SJTW-A 300V Neoprene medium duty
  • Switch: Toggle, external ON/OFF
  • Plug: NEMA 5-15P (L6-20P in 230V configuration) 3 prong

Dimensions: 27" L x 10" W x 15" H

Weight: 122 Pounds (55.33 kg)
