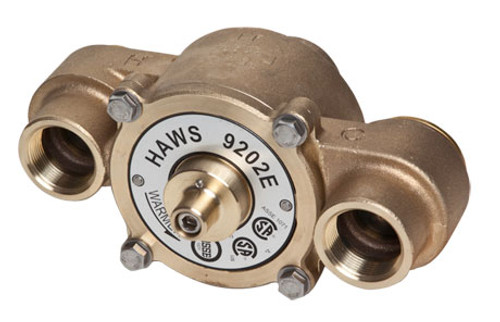

Haws Thermostatic Mixing Valve, flows to 78 GPM

MSRP: $1,815.00
$1,121.40
(You save $693.60 )
(No reviews yet) Write a Review
SKU:
9202E
UPC:
0611970313160
Availability:
Usually Ships in 3-5 Business Days

Haws Model 9202 is a Thermostatic Mixing Valve for emergency eyewash valves that require flow up to 78 gpm. This Thermostatic Mixing Valve mixes hot and cold water to supply tempered water to one or more emergency drench showers and emergency eyewash fixtures.

Thermostatic Mixing Valve

Haws 9202E Emergency Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 78 gpm.

Haws Model 9202E Description
Model 9202E Emergency Valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet downstream for the most accurate measurement.)

View the spec sheet on Haws9202E by clicking on the link for much more information

•A flow rate of 1 to 78 GPM for better temperature control across the operating range
•Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
•Wax based thermostat technology for fast response time with proven highly reliable temperature control
•Highest Cold Water Bypass flow rate in the industry (64% of rated tepid flow rate)
•Modular brass design with internal check stops
•Oversized valve seats resist failures caused by foreign matter
•A new and efficient shuttle design eliminates valve sticking
•A custom funnel design improves temperature control at low flow rates
•Outlet temperature is factory set to 85°F (29°C).
•Tempered water: High temperature limit is factory set to 90°F (32°C).
•0.4 GPM cold water failure rate when tested according to ASSE 1071.
•Cold water by-pass valves are closed during normal operation, regardless of flow rate.
CSA Certified to ASSE 1071 and applicable sections of CSA B125.3.

Buy America Act Information
The vast majority of Haws products qualify under the terms of the act. However, since different purchases often require subtly different responses, Haws recommends that the specific document requesting certification be sent to customer service for a specific answer.

Industry Standards Compliant
