DC Axial Blower w/ Canister and 15 ft. Ducting by Allegro

Product Description
Product Reviews

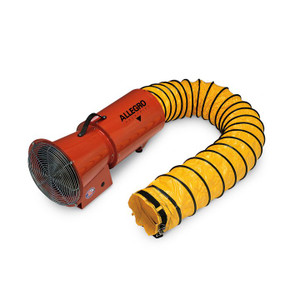

This Allegro 9506-01 DC Axial Blower comes complete including an 8" Axial Blower that is powered by a 12 volt DC Motor along with 15 feet of ducting with a handy storage container.

DC Axial Blower with Canister and 15 ft. Ducting

Allegro 9506-01

This complete all-in-one industrial ventilation system by allegro safety includes an 8" axial blower powdered by a 12 volt DC motor, 15 ft. of ducting and a built in storage canister.

The handle and feet of this DC Axial Industrial blower makes this lightweight system very portable and easy to use.

weight 31 lbs., 1/4 hp motor

free air 1150
1 90 degree bend 595
2 90 degree bend 530

CONSTRUCTION:
 Epoxy powder coated in “safety orange”
 Flange on intake side for optional Inlet Adapter
 18 gauge cold rolled steel housing
 Welded motor mount construction
 Steel/chrome plated grill
 Carry handle made of 3-ply rubber belting
 Equipped with four rubber feet

MOTOR:
HP: 1/3 HP, 12V DC
RPM: 4200
Current Draw: 13A
Fuse: Inline 25A
Cord: 15’ (4.57m) SJOOW, AWG 12/2 90C 300V neoprene medium duty
Plug: Alligator clips

FAN:
 Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
 Moving fan mounted 1 5/8” (4.12cm) from grill for safety
 Grill gap: 5/16” (.79cm)

DUCTING: (Optional)
 Retractable, non-collapsible design
 Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
 Yellow color with black weather-strip and integrated nylon straps
 Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

Allegro 9506-01 with 15 ft. of ducting w/ canister
31 lbs.
1/4 hp

Dimensions:
28" L x 13 5/8" W x 15" H

Flow Rates:
Free Air: 1150 CFM
One 90 Degree Bend: 595 CFM
Two 90 Degree Bends: 530 CFM
