Allegro Industry introduces easy to order, easy to use Complete Ventilation Systems including all the most-asked-for equipment you need for your confined space site. This system comes complete with Allegro 9514 AC Axial Blower, 2 lengths of ducting as well as a duct carry bag for your convenience. We offer super low prices on Allegro blowers everyday!

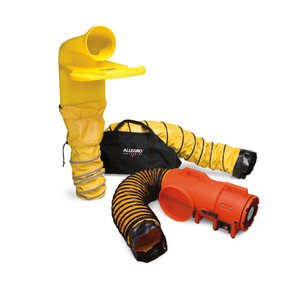

AC Axial Blower Ventilation Systems with MVP
Allegro’s easy to order, easy to use Complete Ventilation Systems including all the most-asked-for equipment you need for your confined space site.
The systems include a choice of Allegro's most popular blowers, six feet and fifteen feet of ducting with a storage bag and a Manhole Ventilation Passthru (MVP). The Centrifugal Blower Systems offer lightweight portability with the highest output available. See individual blower descriptions for CFM, weight and other specifications.
GENERAL DESCRIPTION on ALLEGRO 9514 AXIAL BLOWER :
High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Allegro’s Axial Blower is certified to CSA STD C22.2 No 113. Air delivery is certified CEESI. Available as blower only or complete unit with 15’ (4.57m) or 25’ (7.62) of ducting and storage canister.
Epoxy powder coated in “safety orange”
Flange on intake side for optional inlet adapter
18 gauge cold rolled steel housing
14 gauge steel enclosed panel to protect electrical components
Welded motor mount construction
Steel/chrome plated grill
Handle made of 3-ply rubber belting and equipped with 4 feet
HP 1/3 HP
Certifications: UL Recognized, CSA Certified
Voltage/Hz: 120V AC, 60Hz Single Phase
Current Draw: 3.0A
Cord: 6’ (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V
Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap
Retractable, non-collapsible design
Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
Yellow color with black weather-strip and integrated nylon straps
Class 1 hard drawn spring steel wire helix that meets ASTM 227 spec
Dimensions of Allegro 9514:
28" L x 13 5/8" W x 15" H
Weight: 19 Pounds
Free Air: 1275 CFM
One 90 degree bend: 661 CFM
Two 90 degree bends: 582 CFM
