Allegro 9534 is a AC COM-PAX-IAL Blower that is lightweight yet made of touch steel construction and comes with an AC electric motor. We offer great pricing on all of Allegro's complete line of Industrial Blowers to meet any industries needs. Please contact our office if we can provide you with any additional information.
This AC COM-PAX-IAL Industrial Blower weighs 13% less than the allegro 9513 Blower. This AC com-pax-ial industrial blower features a venturi inlet to increase CFM.

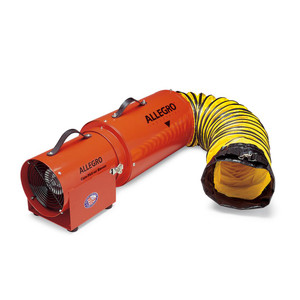

Allegro 9534 is an AC COM-PAX-IAL industrial blower that was designed with tough steel construction, rubber feet, handle and durable grill. Complete with AC electric motor. Blower sold separately or with quick connect 15' or 25' ducting canister.
Complete unit epoxy powder coated orange
15 gauge cold rolled steel housing with welded motor mount construction
20 gauge steel canister
Available with 15’(4.57m) or 25’(7.62m) ducting and canister
Enclosed wide base for greater stability
Steel/chrome plated grill
Carry handle made of 3-ply rubber belting
Equipped with four rubber feet
HP: 1/3 HP
Certifications: UL Recognized, CSA Certified
Volts: 115V AC Single Phase
RPM: 3200 (Loaded at 120 Volts, 60 Hz)
Current Draw: 3.6A (Loaded at 120 Volts, 60 Hz)
Cord: 6’ (1.82m) SJOOW 16/3 AWG neoprene, 300V medium duty
Plug: NEMA 5-15 125V AC
DUCTING (when attached- sold separately) :
Retractable, non-collapsible design
Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
Yellow color with black weather-strip and integrated nylon straps
Class 1 hard drawn spring steel wire helix that meets ASTM specs FAN:
Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Free Air: 778 CFM
One 90 degree bend: 645 CFM
Two 90 degree bends: 496 CFM
12" L x 8" W x 10" H
Weight: 17 lbs.
Also available are:
9533-15 8" AC COM-PAX-iAL Blower with 15 ft ducting and attached canister
9533-25 8" AC COM-PAX-iAL Blower with 25 ft ducting and attached canister
This Allegro Blower can be used with a generator, but it is important to use the proper size generator when powering a blower. Using an undersized generator may cause damage to the blower motor. Use of a generator at the minimum recommended output with additional devises can cause decreased output or blower stoppage. Please contact our office for more information.
