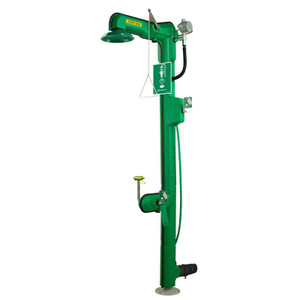

Haws 8317CTFPC1D1 Cable Heated Emergency Shower Combo 120VAC Class 1, Div 1

MSRP: $15,477.00
(You save $2,977.00 )
(No reviews yet) Write a Review
8317 CTFP C1D1
Usually Ships in 5-10 Business Days

Haws 8317CTFPC1D1 Cable Heated Emergency Shower Class 1, Div 1-120 VAC cable heated, freeze-resistant, combination shower and eye/face wash, with top or bottom supply, and rated for C1D1 applications.

Haws 8317CTFPC1D1
Cable Heated 120V Combo Emergency Shower Class 1, Div 1, 120 - universal top/ bottom supply

Haws Model 8317CTFPC1D1 heat traced combination shower and eye/face wash features the medically acclaimed AXION MSR™ eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain. AXION MSR™ also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets. Virtually eliminating mishaps, the unit’s safety features include: a thermal actuator bleed valve, 120V thermostat cable double wrapping inside piping, 3/4" (1.9 cm) insulation surrounding piping and outside jacket to prevent freezing, as well as a universal emergency sign.

  • •Perfect for extreme weather conditions dropping down to -30°F
  • •Universal design allows for top or bottom water supply.
  • •Requires minimal maintenance and is equipped with test card to record weekly testing
  • •Reducing installation time, entire unit is pre-built and fully water/pressure tested
  • •Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
  • •Rated Class 1, Div 1, Group B, C & D. Tempering code T6

Haws 8317CTFPC1D1 is certified by CSA to meet the ANSI Z358.1-2009 Standard for Emergency Eyewash and Shower Equipment. Model is CSA electrical certified.

1-1/4" Schedule 40 Stainless Steel pipe stanchion along with
powder-coated cast-iron 9” diameter floor flange
provide an unsurpassed durability in a long lasting product.
3/4" insulation and ABS plastic jacket prevent freezing
down to temperature levels as low as -30°F (-34.44°C) to
maintain optimal functioning conditions.
Green ABS designed plastic showerhead and eye/face
wash heads equipped with integral 20 gpm flow shower
control and built in 2.5 gpm (2) flow eye/face control allow
both parts of the equipment to be safely used
Automatic thermal actuator bleed valve opens when
internal water temperature drops below 35° F (2°C) and
will not close until temperature reaches 45° F (7°C) so
the unit is protected against freezing. Brass eye/face wash
and shower ball valves are equipped with stainless steel
ball and stem.
120V thermostatically controlled heat traced cable
provides the energy needed to keep the combination
shower and eye/face wash at an optimal temperature.
Entire unit is pre-built and fully water and pressure tested to
ensure no leaks and proper function for reduced
installation time and an added peace of mind.


Shower Test Kit: Model 9010 shower test kit includes holding
rod, upper corrosion-resistant ring to encircle the shower
head, and Tyvek waterproof tunnel shaped tube to guide
the water column to container or drain.
Bleed Valve: Model SP157A, stainless steel scald protection
bleed valve. Automatic thermal actuator bleed valve
opens when internal shower water temperature reaches
110°F (43.3°C) and closes at 95°F (35°C).
Universal Sign: Model SP178LG large vertical universal
combination emergency shower and eyewash sign. Size:
18" x 24".

Shower Head: Model SP829SS, AXION MSR stainless steel
drench shower head with integral 20 gpm flow control.

Buy America Act Information
The vast majority of Haws products qualify under the terms of the act. However, since different purchases often require subtly different responses, Haws recommends that the specific document requesting certification be sent to customer service for a specific answer.

Industry Standards Compliant

Do you need even more information on this Haws 8317CTFPC1D1? Click on the spec sheet to read additional information.

* This emergency shower ships via freight truck. We will contact you with actual freight charges prior to processing your order. Your order will not be processed without your approval of the freight rate.
