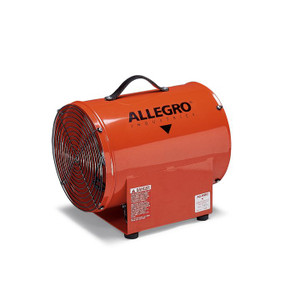

Allegro 9509-50 High Output Industrial Blower was made for job sites requiring larger amounts of air output. This High Output Industrial Blower offers the portability and minimal weight you require. It features a 1/2 hp motor. We offer the lowest price on Allegro 9509-50. Be sure to compare prices for yourself.
Allegro Industrial Blower
9509-50
12 Inch High Output Axial Blower For maximum output applications, this 12" offers 1/2 hp with 6 blade impeller. Power cord includes an inline "on/off" switch.
GENERAL DESCRIPTION:
For applications requiring larger amounts of air output the High Output 12”(30.4cm) blower offers portability and minimal weight, the Allegro 12”(30.4) High Output blower offers a 1/2 HP motor with an efficient six-blade impeller in a rugged metal housing. Certified to CSA Standard C22.2 No.113.
CONSTRUCTION:
ï‚· Complete unit epoxy powder coated in “safety orange”
ï‚· Ducting may be attached at either flange for intake or exhaust ventilation
ï‚· 16 gauge cold rolled steel housing
ï‚· 14 gauge steel base
ï‚· 3-ply rubber carrying handle
ï‚· Steel black powder coated grill
ï‚· Equipped with four rubber feet
MOTOR:
HP: 1/2 HP
Certifications: UL Recognized, CSA Approved
Voltage/Hz: 115V AC, 60 Hz, Single Phase
RPM: 3450
Current Draw: 6.0A
Cord: 25’ (7.62m) 16/3 AWG SJTW 105C 300V medium duty
Switch: Toggle ON/OFF
Plug: NEMA 5-15 (grounded three-prong)
FAN:
ï‚· Glass reinforced polypropylene (PPG) six blade fan, with aluminum hub
ï‚· Moving fan mounted 1 5/8” (4.12cm) from grill for safety
ï‚· Grill gap – 5/16” (.79cm)
DUCTING: (Optional)
ï‚· Retractable, non-collapsible design
ï‚· Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
ï‚· Yellow color with black weatherstrip and integrated nylon straps
ï‚· Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
Free Air: 2202 CFM
One 90° Bend: 1674 CFM
Two 90° Bends: 1598 CFM
--------------------------------------------------------------------------------
40 lbs. 1/2 hp
* Click on the download tab to view a spec sheet below on this Allegro Axial Blower
