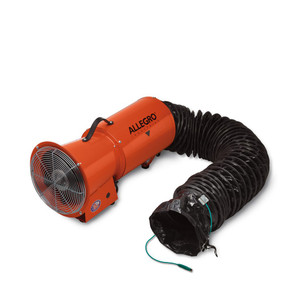

Allegro 9514-05 8" Axial Explosion-Proof (EX) Metal Blower w/ Canister & 15' Ducting

$1,851.00
(No reviews yet) Write a Review
SKU:
9514-05
UPC:
722550697454
Availability:
Usually Ships in 1-3 Business Days

Allegro 9514-05 is an AC Axial Explosion Proof Blower used for applications where explosion proof equipment is needed. This Axial Blower comes with 15 feet of ducting and canister for each storage. This explosion proof motor is UL listed.

AC Axial Explosion Proof Blower w/25 ft. Ducting
Allegro 9514-05

8" AC Axial EP Blower with Canister (includes 115V Plug and 15 feet Ducting

This AC axial explosion proof blower by allegro safety is an electric, explosion-proof motor is UL/CSA listed.

Electric, explosion-proof motor is UL listed. Single-phase motor includes NEMA rated 115V plug (included). It offers tough steel construction and meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements.

GENERAL DESCRIPTION:
Smart compact design allows for easy use and storage without sacrificing airflow. For applications where explosion-proof equipment is needed. Available as blower only or complete unit with 15’ (4.57m) or 25’ (7.62m) of ducting and storage. Certified to CSA Standard C22.2 No.113.

CONSTRUCTION:
 Epoxy powder coated in safety orange
 Flange on intake side (for optional inlet adapter)
 18 gauge steel housing with welded motor mount

construction
 Steel/chrome plated grill
 Carry handle made of 3-ply rubber belting
 Equipped with four rubber feet

MOTOR:
HP: 1/3 HP
Voltage/Hz: 115V AC, 60 Hz, Single Phase
RPM: 3250
Current Draw: 2.2 A
Cord: 25’ (7.62m) SJOOW 18/3 AWG 300V, medium duty
Plug: NEMA 115V, 20 Amp, “ECP” type

FAN:
 Aluminum hub
 Anti-Static glass reinforced Polyamide (PAGAS) six blade fan
 Mounted 1 5/8” (4.12cm) from grill for safety and a grill gap of 5/16” (.79cm)

DUCTING:
 Black single-ply, neoprene coated, vinyl/polyester material, temperature resistant up to 250°F (121.1°C)
 Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 specs)

Blower Dimensions:
28" L x 13 5/8" W x 15" H
Weight: 49 pounds

Flow Rates: (CFM Calculated using 15' of 8" ducting)
Free Air: 890 CFM
One 90 Degree Bend 825 CFM
Two 90 Degree Bends 770 CFM
