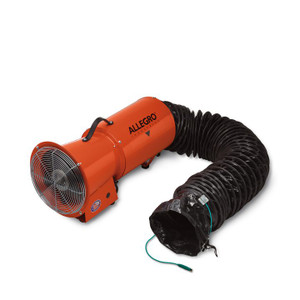

Allegro 9514-06 8" Axial Explosion-Proof (EX) Metal Blower w/ Canister & 25' Statically Conductive Ducting

$1,855.00
(No reviews yet) Write a Review
SKU:
9514-06
UPC:
722550697478
Availability:
Usually Ships in 1-3 Business Days

This AC Axial Explosion Proof Blower Allegro 9514-06 is for applications where explosion-proof equipment is needed. This AC Axial Explosion Proof Blower includes 115 V Plug and 25 feet ducting. Be sure and compare prices- we offer the lowest price on Allegro 9514-06.

AC Axial Explosion Proof Blower w/25 ft. Ducting

8" AC Axial EP Blower with Canister (includes 115V Plug and 25 feet Ducting

This AC axial explosion proof blower by allegro safety is an electric, explosion-proof motor is UL/CSA listed.

Electric, explosion-proof motor is UL listed. Single-phase motor includes NEMA rated 115V plug (included). It offers tough steel construction and meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements.

GENERAL DESCRIPTION:
Smart compact design allows for easy use and storage without sacrificing airflow. For applications where explosion-proof equipment is needed. Available as blower only or complete unit with 15’ (4.57m) or 25’ (7.62m) of ducting and storage. Certified to CSA Standard C22.2 No.113.

CONSTRUCTION:
 Epoxy powder coated in safety orange
 Flange on intake side (for optional inlet adapter)
 18 gauge steel housing with welded motor mount construction
 Steel/chrome plated grill
 Carry handle made of 3-ply rubber belting
 Equipped with four rubber feet

MOTOR:
HP: 1/3 HP
Voltage/Hz: 115V AC, 60 Hz, Single Phase
RPM: 3250
Current Draw: 2.2 A
Cord: 25’ (7.62m) SJOOW 18/3 AWG 300V, medium duty
Plug: NEMA 115V, 20 Amp, “ECP” type

FAN:
 Aluminum hub
 Anti-Static glass reinforced Polyamide (PAGAS) six blade fan
 Mounted 1 5/8” (4.12cm) from grill for safety and a grill gap of 5/16” (.79cm)

DUCTING:
 Black single-ply, neoprene coated, vinyl/polyester material, temperature resistant up to 250°F (121.1°C)
 Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 specs)

Blower Dimensions:
36" L x 13 5/8" W x 15" H
Weight: 57 pounds

Flow Rates: (CFM Calculated using 15' of 8" ducting)
Free Air: 890 CFM
One 90 Degree Bend 825 CFM
Two 90 Degree Bends 770 CFM
