Allegro 9538-25 8" Axial Explosion-Proof (EX) Plastic Blower w/ Compact Canister & 25' Ducting

$1,525.00
(No reviews yet) Write a Review
SKU:
9538-25
UPC:
722550698604
Availability:
Usually Ships in 1-3 Business Days

Allegro 9538-25

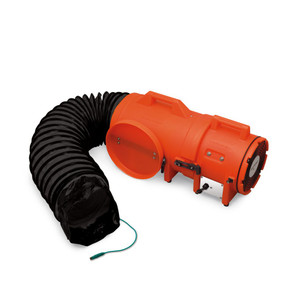

Allegro Explosion Proof Com-Pax-ial Blower with 25 ft ducting and canister

Allegro 9538-25 Industrial Blower Plastic Explosion Proof COM-PAX-IAL blower with 25 ft. ducting offers high output from a compact axial blower. It was designed for easy use and storage with a polyethylene housing and canister assembly making it lightweight and easy to transport from job site to job site. Be sure to check out our super low prices on Allegro Industrial Blowers.

Industrial Blower Plastic Explosion Proof COM-PAX-IAL industrial blower 8" with 25 ft ducting. Electric, explosion-proof motor is UL/CSA listed. Single-phase motor includes NEMA rated 115V plug for use with explosion-proof socket (NOT included). Meets Class I, Divisions I and II, Groups C and D and Class II, Divisions I and II, Groups F and G Hazardous Locations Requirements*.

Engineered with flexibility and job demands in mind, every feature of this super-quiet, high-output Com-PAX-ial Blower is designed for effectiveness and optimal air-flow performance. Compact industrial blower and canister are made of durable, lightweight corrosion-, UV- and chemical-resistant polyethylene material. Sturdy, easy-grip handles molded directly into the blower and canister housing makes for convenient, reliable transport. This versatile unit has 25’ ducting, with the newly designed quick-connect clipping system allowing workers to attach canister, tools-free, to input side for powerful extraction or output side for ventilation. Ducting stores conveniently within canister.


CONSTRUCTION:
 Polyethylene housing and canister assembly
 Lightweight, corrosion, UV and chemical resistant
 Super quiet, “safety orange”
 Bottom enclosure to protect electrical components
 Carry handle molded into blower and canister housing
 Steel powder coated grill

MOTOR:
HP: 1/3
Voltage/Hz 115 V, 60 Hz, Single Ø
Max RPM: 3250
Current Draw: 2.2A
Cord: 25’ (7.62m) SJOOW 18/3 AWG 300V, medium duty
Plug: NEMA 115V, 20 amp, “ECP” type

FAN:
 Polypropylene six blade fan, aluminum hub
DUCTING: (included on 9538-15 and 9538-25 models)
 Black single-ply lightweight vinyl/polyester, coated with neoprene 250°F (121.1°C) temp. resistant
 Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix

Free Air: 900 CFM
One 90 degree bend: 650 CFM
Two 90 degree bends: 625 CFM

 National Electrical Code (NEC)- A hazardous location is an area where the possibility of explosion and fire is created by the presence of flammable gases, vapors, dusts, fibers or flyings. NOTE: Fibers and flyings are not likely to be suspended in the air, but can collect around machinery or on lighting fixtures and where heat, a spark or hot metal can ignite them.
*Warning: Explosion-proof industrial blowers must be used with statically conductive ducting
