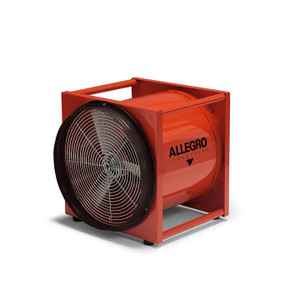

Allegro 9515-50EX 16" Axial AC High Output Explosion-Proof (EX) Metal Blower

$1,865.00
(No reviews yet) Write a Review
SKU:
9515-50EX
UPC:
722550697669
Availability:
Usually Ships in 1-3 Business Days

Allegro 9515-50EX Explosion Proof High Output Blower is for locations that require the maximum amount of output air. This High Output Blower is powered by a 1 1/2 hp motor 3450 RPM ULlisted, IECEx/ATEX/INMETRO certified motor and comes with a 115V plug. The flange on this blower is interchangeable for intake or exhaust mounting. We offer great prices on all of Allegro's Industrial Blowers.

Explosion Proof High Output Blower 16"

Allegro 9515-50EX High Output Blower was designed for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and power coated in safety orange with 4 blade impeller. Powered by a 11/2 hp, 3450 RPM UL Listed, IECex/ATEX/INMETRO Certified Motor. Comes with an 115V plug, interchangeable flange for intake or exhaust mounting, integrated carry handles on all four sides for easy transport and a steel/zinc plated grill. 4 rubber feet, built in on/off switch, voltage change switch and stack-able are added features of this powerhouse unit.

Free Air 4839
One 90 degree bend 2942
Two 90 degree bend 2926

62 pounds

CONSTRUCTION:
 Complete unit epoxy powder-coated in orange
 Interchangeable flange for intake or exhaust side mounting
 16 gauge cold rolled steel housing
 Integrated carry handles on four sides, stackable design
 Steel grill (zinc plated), equipped with four rubber feet

MOTOR:
HP: 1 ½ HP
Certifications: UL Listed, IECex/ATEX/INMETRO Certified Voltage/Hz 115/230V AC, 50/60 Hz, Single Phase
RPM: 3450
Current Draw: 15.5/7.8A
Cord: 25’ (7.63m) 12/3 AWG SJOOW 90C 300V medium duty
Plug: NEMA 20 Amp, 115V plug, Explosion Proof rated
Protection: Thermal, Automatic Reset

FAN:
 Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
ACCESSORIES:
Ducting
 Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temp. resistant up to 250°F (121.1°C)
 Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 specs)
Sockets
 9503-03 – Iron mounting box with triple coat finish and spring-loaded door to keep out dust when in use. When plug is in use, a neoprene gasket inside receptacle seals around plug to keep out dirt, water, dust, etc.

Dimensions:
18" L x 18" W x 19" H
