Explosion Proof High Output Blower 20" Allegro 9520-50EX

Product Description
Product Reviews

Allegro 9525-50EX offers you a high output blower that is also explosion proof. This blower is for applications that require the maximum amount of output from a blower. First Aid and Safety Online offers super low prices on Allegro Blowers everyday!

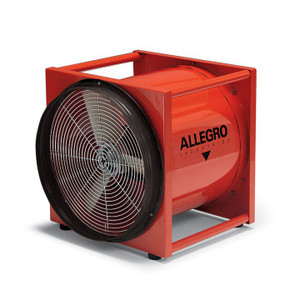

Explosion Proof High Output Blower 20"

Allegro 9525-50EX was designed for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and powder coated in safety orange with 4 blade impeller. Powered by a 11/2 hp, 3450 RPM UL Listed, IECex/ATEX/INMETRO Certified Motor. Comes with an 115V plug, interchangeable flange for intake or exhaust mounting, integrated carry handles on all four sides for easy transport and a steel/zinc plated grill. 4 rubber feet, built in on/off switch, voltage change switch and stack able are added features of this powerhouse unit.

CONSTRUCTION:
 Complete unit epoxy powder-coated in orange
 Interchangeable flange for intake or exhaust side mounting
 16 gauge cold rolled steel housing
 Integrated carry handles on four sides, stackable design
 Steel grill (zinc plated), equipped with four rubber feet
MOTOR:
HP: 1 ½ HP
Certifications: UL Listed, IECex/ATEX/INMETRO Certified
Voltage/Hz 115/230V AC, 50/60 Hz, Single Phase
RPM: 3450
Current Draw: 15.5/7.8 A
Cord: 25’ (7.63m) 12/3 AWG SJOOW 90C 300V medium duty
Plug: NEMA 20 Amp, 115V plug, Explosion Proof rated
Protection: Thermal, Automatic Reset
FAN:
 Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
ACCESSORIES:
Ducting
 Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temperature resistant up to 250°F (121.1°C)
 Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix meets ASTM 227 specs
Sockets
 9503-03 – Iron mounting box with triple coat finish and spring-loaded door to keep out dust when in use. When plug is in use, a neoprene gasket inside receptacle seals around plug to keep out dirt, water, dust, etc.

Blower Dimensions:
19" L x 22" W x 22.5" H

Weight: 71 pounds

Flow Rates:
Free Air CFM 6837
One 90 degree bend CFM 5268
Tow 90 degree Bends CFM 4829

Write a Review

Allegro 9525-50EX 20" Axial Explosion-Proof (EX) High Output Metal Blower

Brand : Allegro
