Allegro A-3000ATE or 9846 Air Respirator Pump can handle up to six respirators or four hoods and provides you with a cost effective breathing air delivery for larger work locations and operations such as hazardous materials removal and clean up operations.

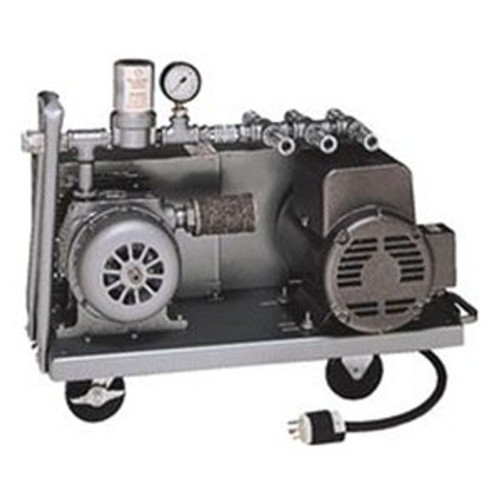

Allegro A 3000ATE Air Respirator Pump
Allegro safety's ambient air pump model A-3000ATE provides cost effective breathing air delivery for large multi-worker operations such as hazardous material removal and clean-up, etc.
This ambient air respirator's electric motor requires 30 amp outlet. For up to six respirators or four hoods. Solid performance in multi worker applications, cleaning, sanding or chemical handling operations. This allegro safety ambient air respirator model has a 3 hp motor.
CONSTRUCTION:
• Rigid metal base & housing with locking 4” caster wheels
• Brass & galvanized steel plumbing
** • Quick-connect Rectus (OBAC) air fittings
** (other fittings available upon request)
• Adjustable pressure relief valve
• Pressure gauge
• Steel belt guard & handle
• Powder coated gray
PUMP:
Type: Oil-less, rotary vane, belt driven
Vanes: Carbon construction (4 ea/ replaceable) (4.500” X 1.875” X 0.250”)
Inlet Filter: 50 Micron felt material
Exhaust Filter: 0.3 Micron HEPA
Working Pressure: 2-12 psi (15 psi max)
Performance: 0-32 CFM (adjusted via pressure relief valve)
*** Airline length: 100 feet maximum from pump to respirator (sold separately)
Noise level: At Pump: 105 dB
At 6 feet: 90 dB
At 10 feet: 85 dB
MOTOR:
Type: 3 HP UL Listed, CSA Certified, TEFC continuous duty
Volts: 1 15V/230V AC Single Ø, 60 Hz
Current Draw: 33.6A @ 115V (16.8A @ 230V)
NEMA Nom Eff: 77
Cord: 10’ 10/3 AWG S00W-A 600V Neoprene heavy duty
Switch: External ON/OFF
Plug: NEMA L5-30P (L6-30P in 230V configuration)
Dimensions:
length- 30"
Width- 17"
Height- 24"
Weight- 217 lbs
